FC610-5DO: 3 Speed Fan or EC Fan, On/off valve or 0-10V valve
Communication: Wifi(Tuya), RS485
Window contact/roomcard contact input port
External sensor
Color: BLack/Grey/Golden
Sensor Type: Temperature humidity sensor/TVOC sensor/CO2 sensor
Power supply: 24VAC/DC+10% 50/60HZ
Set Temp. Range: 1~50°C
Control Precision: ±1°C
Shape Dimension: Diameter 86*33.5mm
Load Current: <3A
Power Box Dimension: 52*52*22mm
Viewing Dimension: Diameter 53mm
Net Wveight: 450g
The Dual-Ring thermostat FC610 , With Microcomputer control and WIFl communication technology to detect temperature difference between room temperature and setting temperature , then through controlling the fan , ON/OFFvalve and modulating valve to keep the room at comfortable and constant temperature . This series product apply to control two pipe or four pipe fan coil , two wire or three wire motorized valve ,3-stage fan , EC fan and water floor heating system . You can also control your thermostat anyway where you are by APP in your cell phone , with 1-way RS485 interface to BMS control system , can realize centralized control and management .
|
Measuring values
|
Temperature
|
||||
|

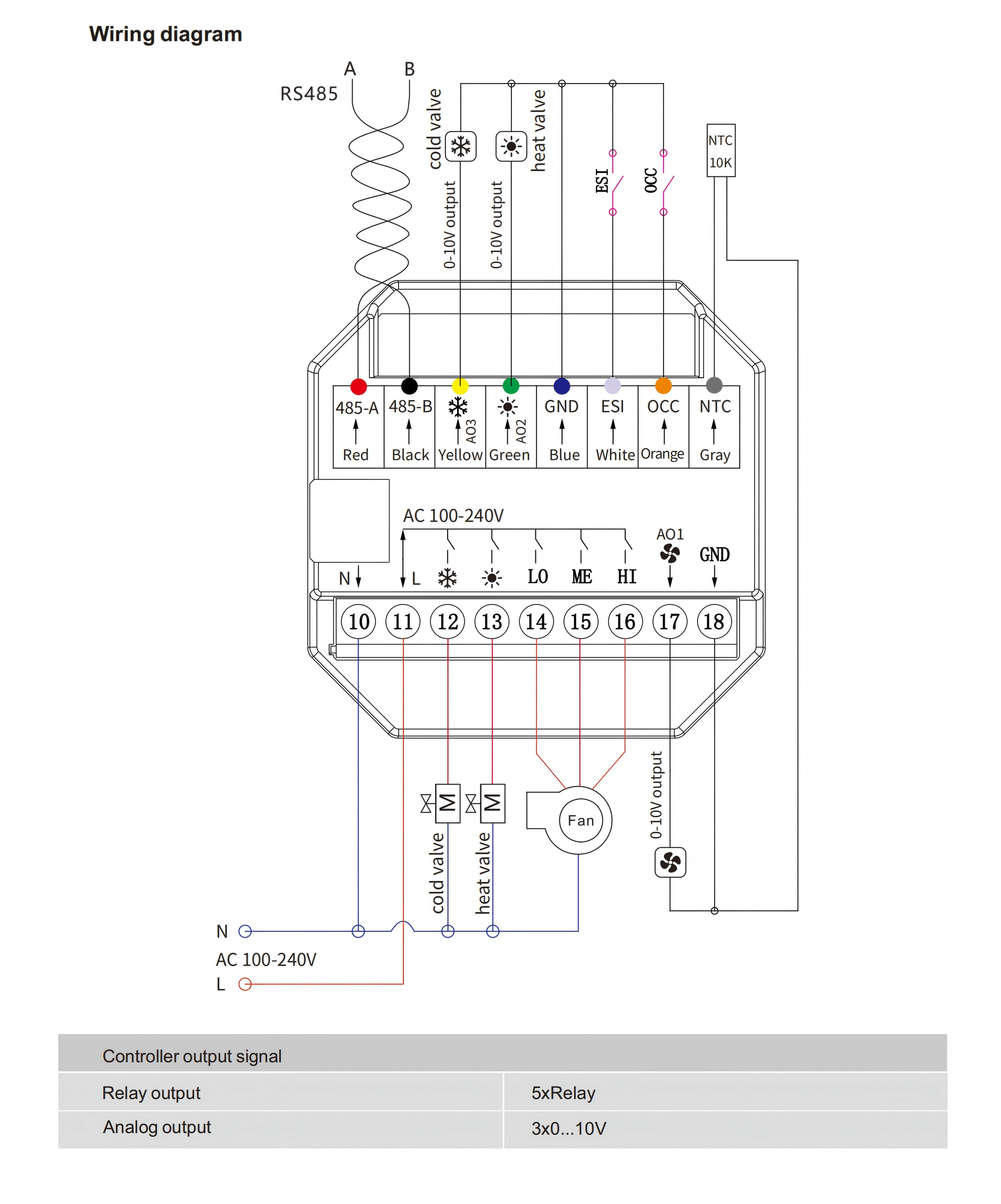

Output switch contact
|
2 normally open contacts, 250v load max 3A(heating & cooling via 2-point control)
|
3 normally open contact, 250v load max. 3A, Fan
|
|||
|
Output voltage
|
2*0-10v for heating & cooling
|
1*0-10v for fan
|
|||
|
Inputs
|
Input for external sensor NTC 10K
|
Input digital for floating contact, window contact, dew point sensor
|
Input digital for floating contact, occupancy sensor, key card switch
|
||
|
Network technology
|
RS485 Modbus, RTU, half-duplex, baud rate 4.800, 9.600, 19.200 or 38.400, parity: non (2 stop bits), even or odd (1 stop bit)
WI 2.4G wi communication |
||||
|
Power supply
|
24v DC/AC 50/60Hz
|
||||
|
Power consumption
|
Max. 3W
|
||||
|
Max load current
|
＜3A
|
||||
|
Measuring range temp.
|
+1~+50 °C
|
||||
|
Accuracy temperature
|
±1K (typ. at 21 °C)
|
||||
|
Control functions
|
Set point adjustment +1. +50 °C, (default +16. +30 °C)
|
||||
|

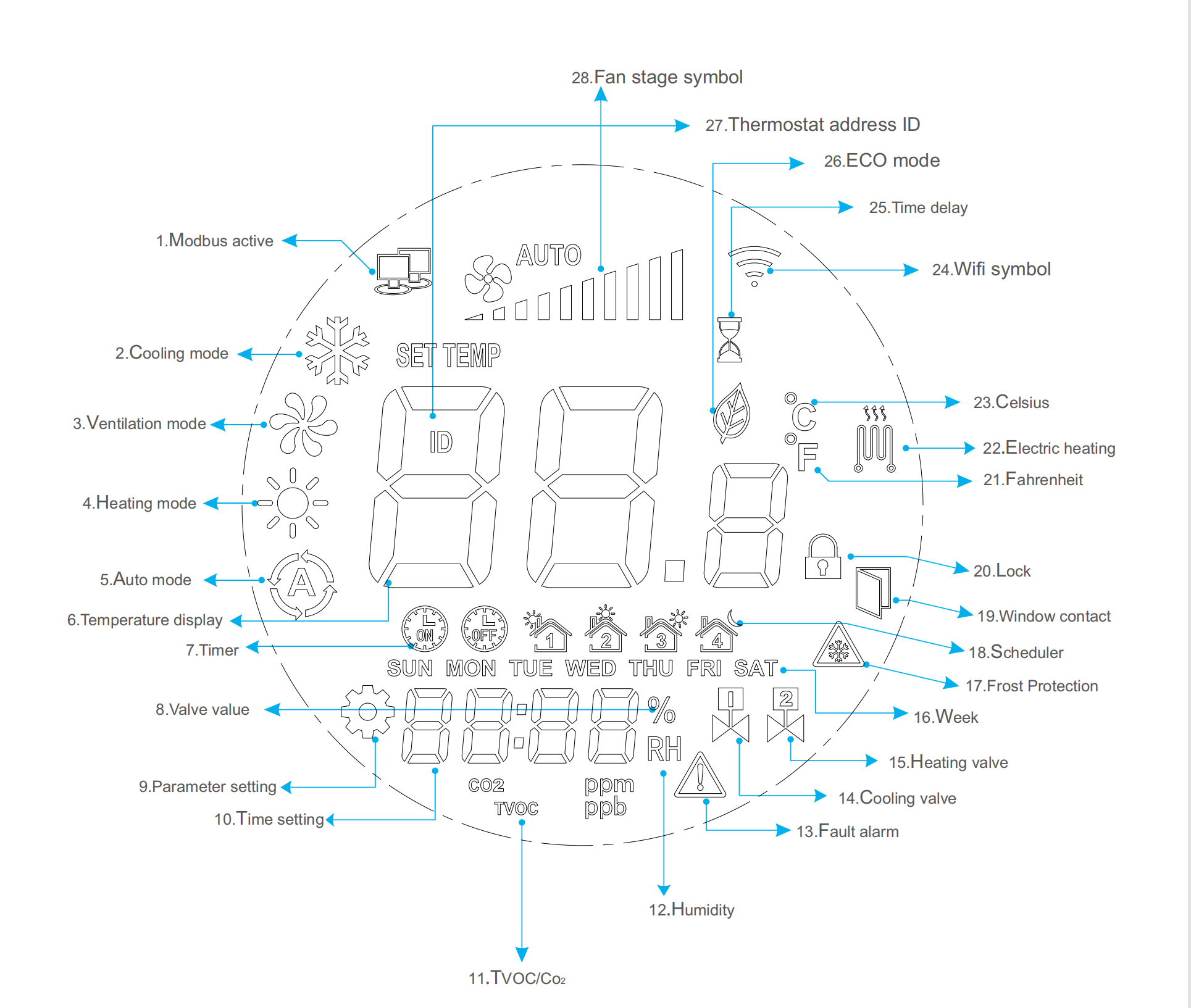

Display
|
LCD Ø49 mm, black background white lighting
|
||||
|
Enclosure
|
Power unit: Fire proof PC+ABC
Display unit: Aluminum Alloy + High strength 3D Curved tempered glass |
||||
|
Protection
|
IP20 according to EN 60529
|
||||
|
Cable entry
|
Rear entry
|
||||
|
Connection electrical
|
Terminal block max. 1, 5 mm²
|
||||
|
Ambient condition
|
-10. +50 °C, max. 95% rH non-condensing
|
||||
|
Mounting
|
Flush mounted with standard 86*86 wall box (Ø=60 mm)
|
||||
|

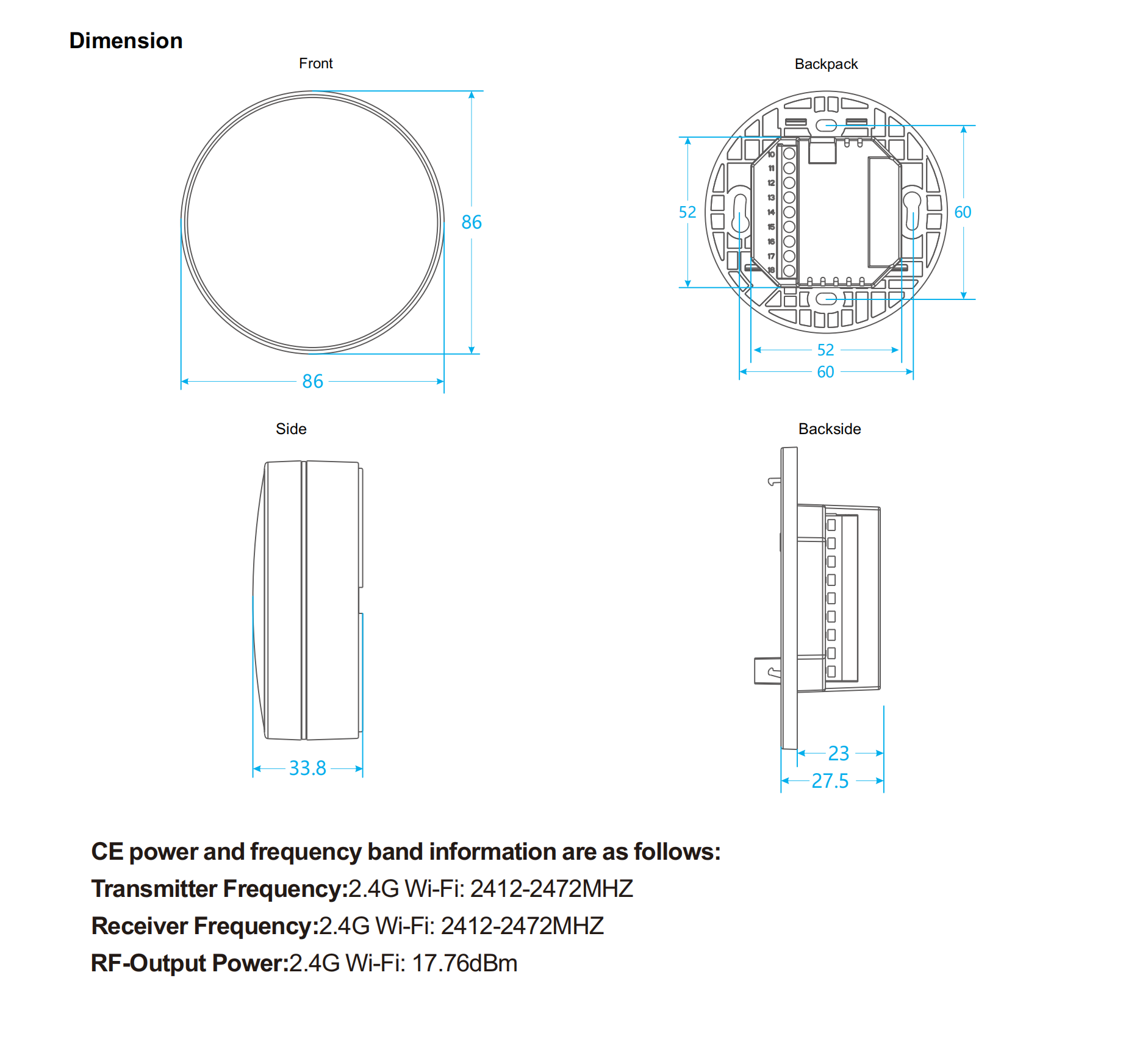

Dimension(L*W*H)
|
86*86*61mm
|
||||
